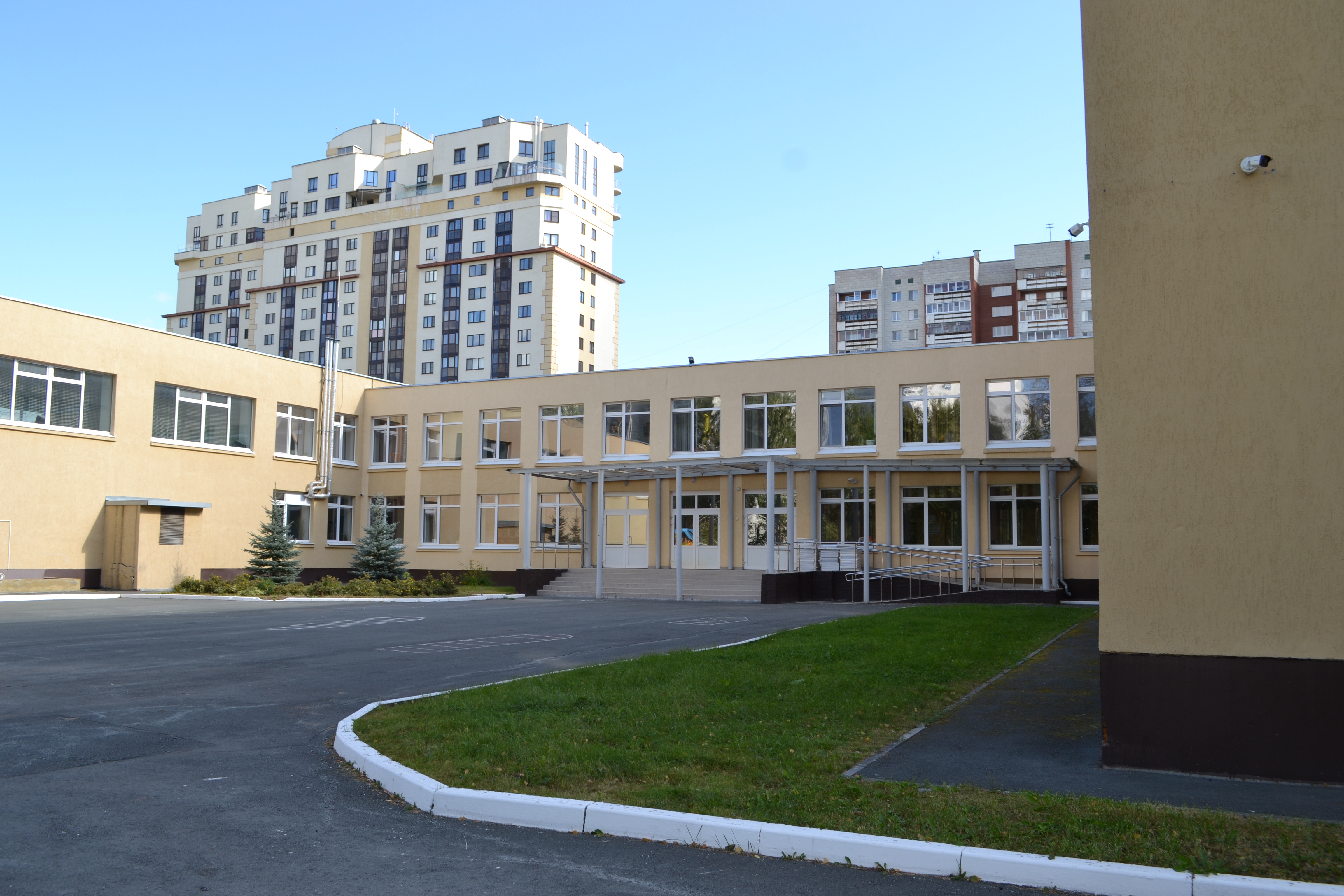

Hikvision company together with its partner, Ural Security System Center (USSC), has modernized the security system of Municipal Secondary School No. 184 "New School" in Yekaterinburg. The closed-circuit television system is based on Hikvision and HiWatch open-street CCTV cameras.
It was required to replace outdated equipment on the territory and in the school building, as well as to install new cameras in so-called "blind" zones to increase control and security over the territory. It was also required to ensure the unification of technical solutions and access to video data. The school management paid special attention to the quality of the transmitted image, the availability of certificates and terms of warranty support, when they were choosing systems. An important requirement in the project was the possibility to implement an economically-sensible, yet a functional and reliable solution to build a uniform CCTV system.
To cover the entire school territory with a CCTV system, HiWatch camera models with different focal lengths were selected – the devices control both wide zones (the common area in front of the school, its perimeter, and others) and narrower ones (the entrance space, staircases, vehicular and pedestrian accesses to the school, inner yards). The big advantage of the system is the availability of modern EXIR internal light emitting within the range of up to 30 meters - it is a patented Hikvision's technology based on thin–film light-emitting elements. Unlike conventional infra-red internal light, EXIR technology ensures uniform light scattering from diodes, so when the camera switches to a black-and-white mode at night, there are no dark corners at the edges of the frame and light-struck areas in the center. It enables to get a better image in poor light conditions and get reliable information about the current situation in the protected area.

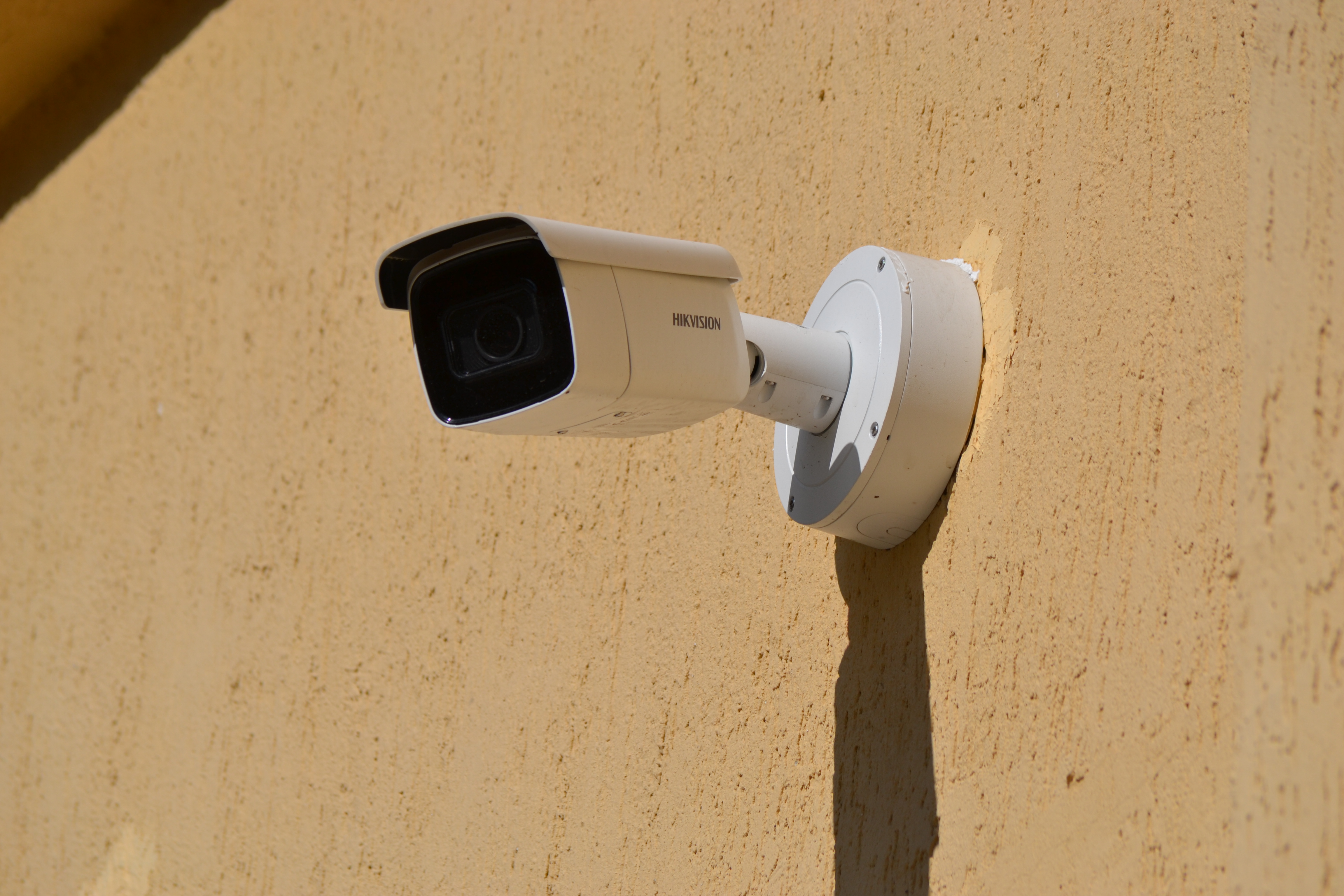

To ensure the safety of playgrounds, 4 MP Hikvision cameras with EXIR internal light were used. They emit light within the range of up to 50 meters to increase the monitoring area. High resolution and additional analysis for detection motions when "virtual" lines are crossed and specified areas are intruded significantly increases the information image content and the effectiveness of the security system.
The installed cameras support the RoI function – highlighting the specified areas – which enables to broadcast the selected frame area (for example, where there is constant movement) in higher quality than all other areas. This reduces the requirements for bitrate and saves space in the archive. Application of H.265+ compression codec ensures additional saving, due to which the system compresses the video stream without losing the original quality, but the archive takes up much less space.

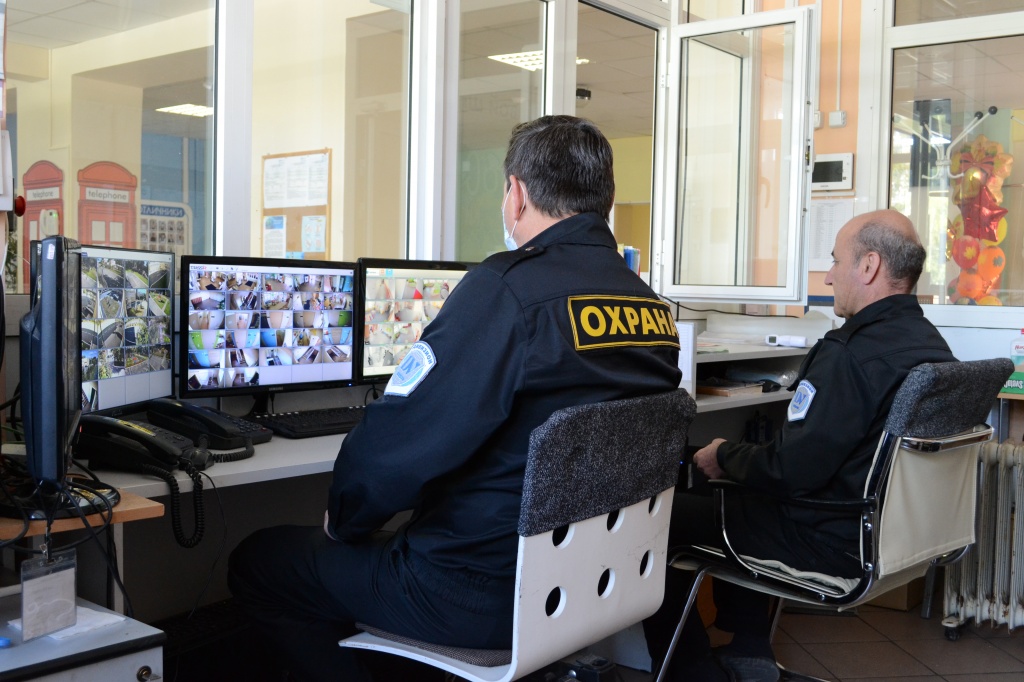

As part of the security system modernization project for "New School" in Yekaterinburg, outdated readers of access control system were also replaced with new PERCo readers which are supported with NFC mobile identifiers. The CCTV system based on Hikvision and HiWatch cameras was integrated into the shared IT school infrastructure which is based on Trassir software of DSSL company.
About the project at first hand
Valentin Bogdanov, General Director of USSC
"For more than 14 years, USSB company has been implementing various projects not only to protect information, but to ensure the security of material resources of organizations and personnel, as well. The gained expertise and experience enabled us to implement the project, ensuring a high level of security on the territory of Municipal Secondary School No.184 "New School". We hope that the project to improve the technical safety of the "New School" will become a good example for schools throughout the region to implement the concept of "Safe School" and will enable employees, parents and children to feel more secure. We thank "Council of Parents " of the New School", non-commercial organization, for financing an important project."
Igor Mashkeev, Director of Business Development in the Ural Federal District, Hikvision Russia:
"One of the key trends in the security segment is the creation of integrated solutions based on a single vendor or a single platform on which all other systems are combined. The project for the "New School" in Yekaterinburg is one of the examples of bringing this trend to life. Another important point is the selection of optimal solutions that are not only kept within budget, but enable to complete the set tasks. For school No.184 project, simple, but already proven devices were selected, with a full set of technical parameters that provide the desired image quality, as well as the possibility to integrate equipment with other security elements to increase the level of security of the school."
